LDR
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Mar 26, 2011 10:19 am

Location: UK
Country: United Kingdom
17 goes inside the loading port on the left side. The button on the outside presses against it, to release the loaded cartidges.

Theres one screw that holds it in place, that goes in from the outside. The spring and button either side that screw are fitted on the inside
Attachment:
1.jpg [ 94.02 KiB | Viewed 5510 times ]
Attachment:
2.jpg [ 78.06 KiB | Viewed 5510 times ]
Attachment:
3.jpg [ 101.98 KiB | Viewed 5510 times ]


Top
 Profile
Reply with quote
Sidewinder
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Mar 26, 2011 11:58 am
Ask me about Giraffes...
User avatar

Location: Sheffield
Service Number: A13/TQ1.4.19720EX
Country: United Kingdom

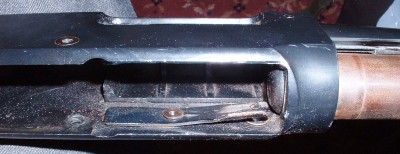

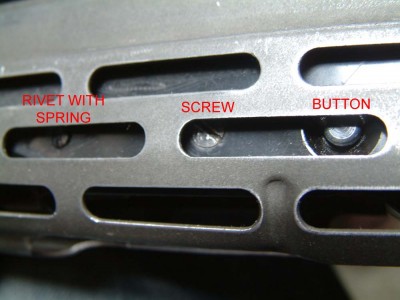

It goes inside the receiver at the loading port, secured in the middle with a screw and a pin at either end - the front pin is sprung. It keeps the shells in the mag tube until the loading ramp moves past it to release one as you rack the action.
Attachment:
M31 PFC (1).JPG
M31 PFC (1).JPG [ 183.49 KiB | Viewed 5504 times ]

Attachment:
M31 PFC (2).JPG
M31 PFC (2).JPG [ 222.74 KiB | Viewed 5504 times ]


SAS

_________________
Alan T. Alien
1st Lt Smith, SA "Sidewinder"
A13/TQ1.4.19720EX CMA
Founder of UKCM 13th Regt. 1st Batt. Freebooters
Founder of Special Armaments Section (Heavy Weapons)
"People don't understand. people like me"
Top
 Profile
Reply with quote
philip7
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Mar 26, 2011 12:12 pm

Country: United Kingdom
thanks for that guys got back together now can carry on with pr build
Top
 Profile
Reply with quote
philip7
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Mar 26, 2011 1:51 pm

Country: United Kingdom
LDR wrote:
A couple of pics showing mine:

Image Image



any engineers on here that can make me this adaptor plz ??

thank you
Top
 Profile
Reply with quote
LDR
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Mar 26, 2011 2:11 pm

Location: UK
Country: United Kingdom
The tube is easy enough. Just cut a piece down to the right length, then sand the top flat.

The key on the side was made by Data. Thats the hard part if you dont have any metal work tools.
Top
 Profile
Reply with quote
philip7
 Post subject: Re:
PostPosted: Sun Mar 27, 2011 9:27 am

Country: United Kingdom
LDR wrote:
well. i've started this build and heres the MGC PFC m31 in a real SPAS cage.

I've lined up the m31s ejection port with the centre of the REM SPAS cut, which has been drawn on for now.

Nice fit. Barrels need cutting, and trigger guard also. Will need a couple of extra small cust either side of trigger due to safety button ( i think its the safety).

So if youre using an MGC m31 there is very little extra that needs doing, than the normal REM cuts.


how much did u shorten the cocking tube to get the mgc to go in that far in the cage ?
Top
 Profile
Reply with quote
philip7
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Fri Apr 08, 2011 11:01 am

Country: United Kingdom
philip7 wrote:
LDR wrote:
A couple of pics showing mine:

Image Image



any engineers on here that can make me this adaptor plz ??

thank you


bump bump
Top
 Profile
Reply with quote
xstoka
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Fri Apr 08, 2011 11:44 am

Location: leicester, uk
Country: United Kingdom
here is how I have done it...

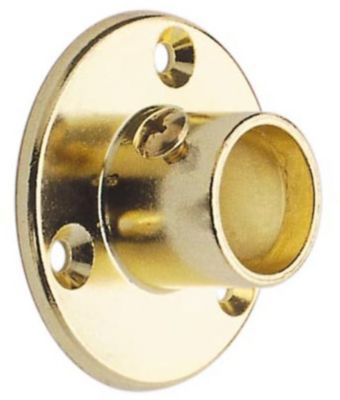

After cutting all the pieces down, I used two of these things (curtain pole holders)... availiable in B&Q or any other hardware store!.
Attachment:
1.jpg [ 16.22 KiB | Viewed 5383 times ]

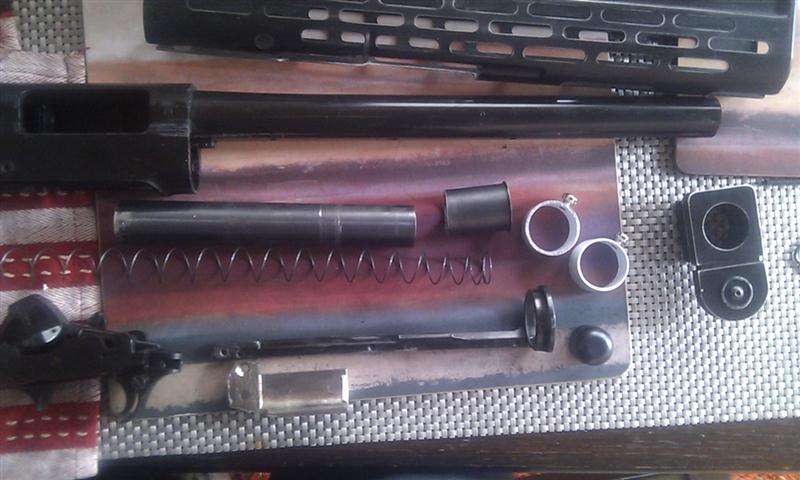

Cut the end off so I was left with two tubes, these already had a screw hole in them used to hold onto the curtain pole that is usually used, this screw would be used to hold the "curtain pole" adapter onto the shotgun racking section, and also to hold the spas handle.
Attachment:
2 (Small).jpg
2 (Small).jpg [ 114.77 KiB | Viewed 5383 times ]

Attachment:
3 (Small).jpg
3 (Small).jpg [ 71.47 KiB | Viewed 5383 times ]

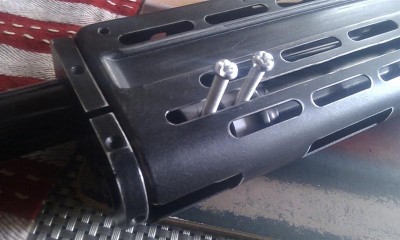

I was worried this was not strong enough so I reinforced the screw holes a little by using two extra nuts and sticking them on used some "JB weld" (i think its like a epoxy glue, mix 2 parts together and it hardens).
Attachment:
5 (Small).jpg
5 (Small).jpg [ 61.89 KiB | Viewed 5383 times ]


It holds very well and has been racked more times than I can count!
Attachment:
6 (Small).jpg
6 (Small).jpg [ 97.41 KiB | Viewed 5383 times ]


Top
 Profile
Reply with quote
philip7
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Fri Apr 08, 2011 1:42 pm

Country: United Kingdom
good tips cheers mate
Top
 Profile
Reply with quote
philip7
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Apr 16, 2011 9:21 am

Country: United Kingdom
are the bolts on the racking handle M4 or M5 plz ?
Top
 Profile
Reply with quote
LDR
 Post subject: Re: MGC Remington M31-RS2 Shortie
PostPosted: Sat Apr 16, 2011 10:27 am

Location: UK
Country: United Kingdom
the allen bots on mine, which go through the spas grip and into the racking key are M3.
