74JakeSpeed
 Post subject: Making 95round magazine for G&P PR
PostPosted: Wed Jul 11, 2012 4:33 pm

Country: Korea, South
I made 95round magazine for G&P kit + Tokyo Marui M1A1 Pulse Rifle.
Just spring feeding.

Here are photos...

Attachment:

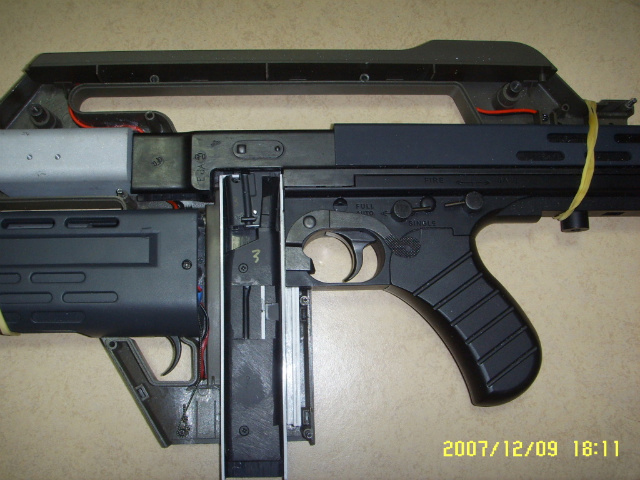

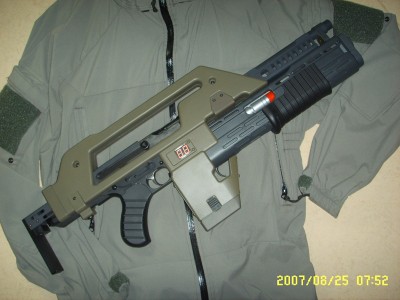

Slightly modified G&P PR.
SSL11851-800x600.jpg [ 410.89 KiB | Viewed 4326 times ]


Attachment:

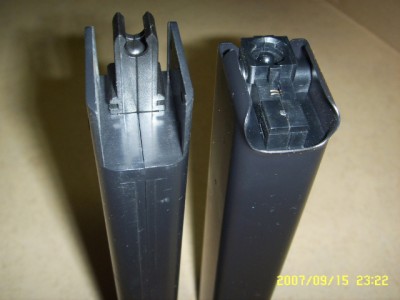

Left : cheap air-cocking Thompson magazine. Right : TM AEG magazine.
SSL11862.jpg [ 101.62 KiB | Viewed 4326 times ]


Attachment:

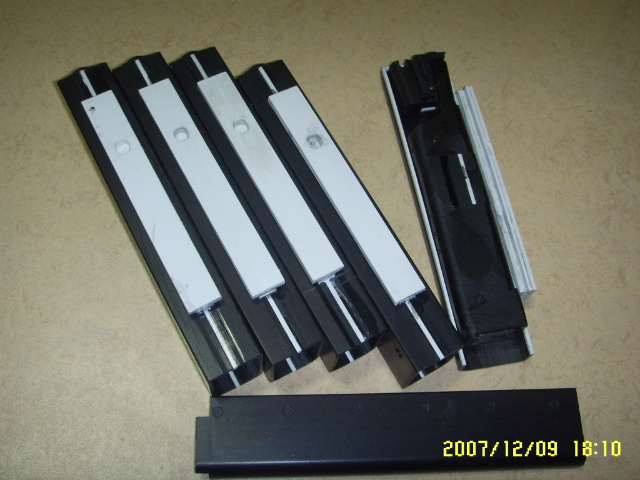

I made five magazines at once. I didn't use TM Thompson AEG magazine. Upper right is inside of magazine.
SSL11979.jpg [ 176.49 KiB | Viewed 4326 times ]


Attachment:

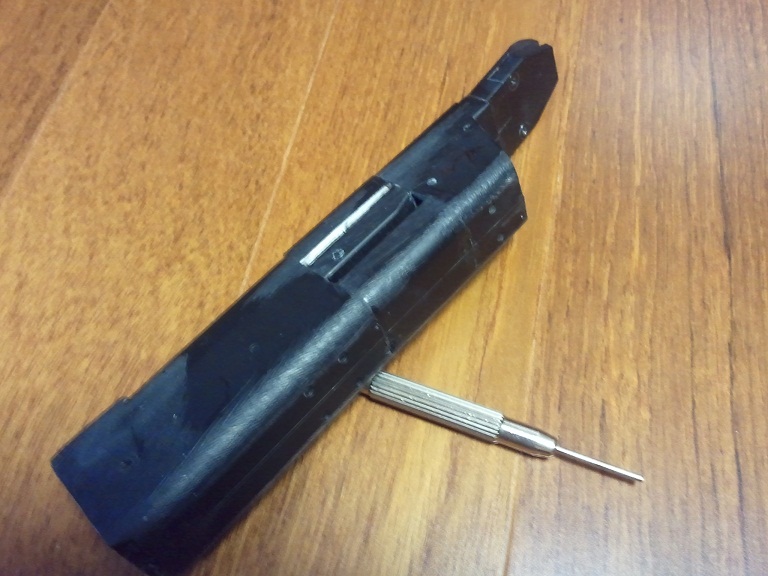

The main issue was how to insert 95round spring feeding mechanism into the short PR magazine.
I solved this problem using 100round spring feeding magazine for AE Pistol from TM Glock 18C.
G18C magazine cut back the top of a set side by side in the center of the magazine has been inserted and paste. It still capable 100round BBs.

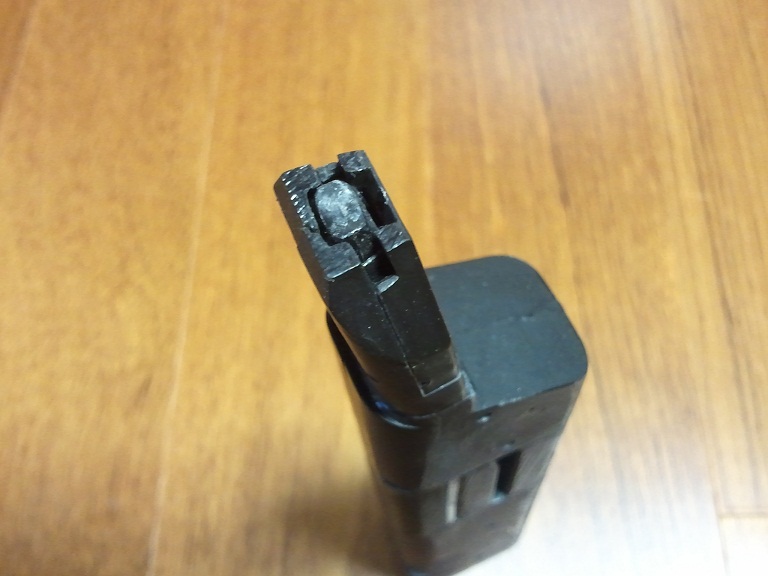

Part of STAR MP7 magazine is used for entrance of BB.
SSL11980.jpg [ 183.31 KiB | Viewed 4326 times ]


Attachment:

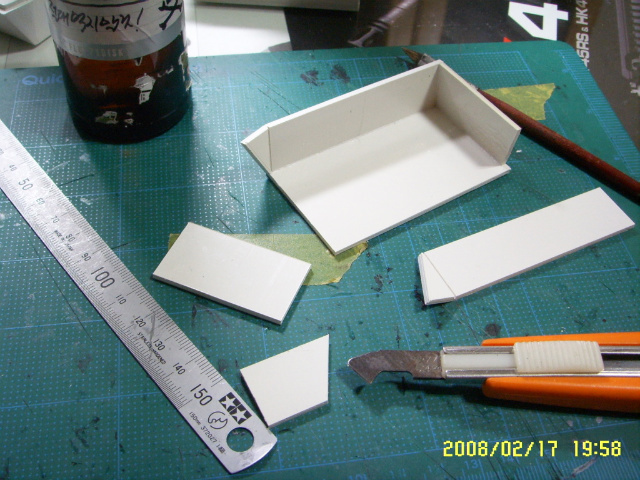

Making bottom of PR magazine. Using ABS plates and glue.
SSL12112.jpg [ 211.98 KiB | Viewed 4326 times ]


Last edited by 74JakeSpeed on Fri Aug 17, 2012 1:43 am, edited 8 times in total.

Top
 Profile
Reply with quote
PVB
 Post subject: Re: Making 95 rounds magazine for G&P PR
PostPosted: Wed Jul 11, 2012 4:48 pm
Ready to Rock & Roll!
User avatar

Location: Rochester, Kent, U.K.
Service Number: A08/TQ2.0.72136E1
Country: United Kingdom
Great mod you did there. 8)

_________________
Steve
Corporal in 69th Regt. 1st Batt. Homer’s Heroes.

"I'd like to die at the age of 80 in my own bed, with a belly full of wine and a girl's mouth around my c**k."
Top
 Profile
Reply with quote
74JakeSpeed
 Post subject: Re: Making 95round magazine for G&P PR
PostPosted: Fri Jul 13, 2012 5:41 pm

Country: Korea, South
Here are some photos left.

I erased almost of my photos by disk failure a few years ago. So these are only photos in my notebook memory.

Attachment:

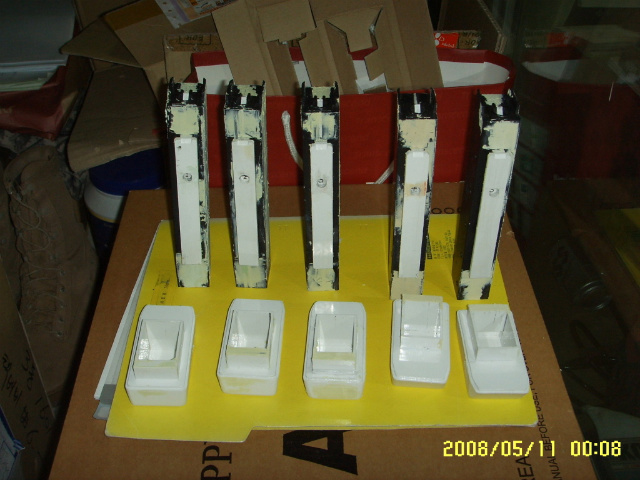

I applied polyester putty.
SSL12278.jpg [ 175.42 KiB | Viewed 4280 times ]


Attachment:

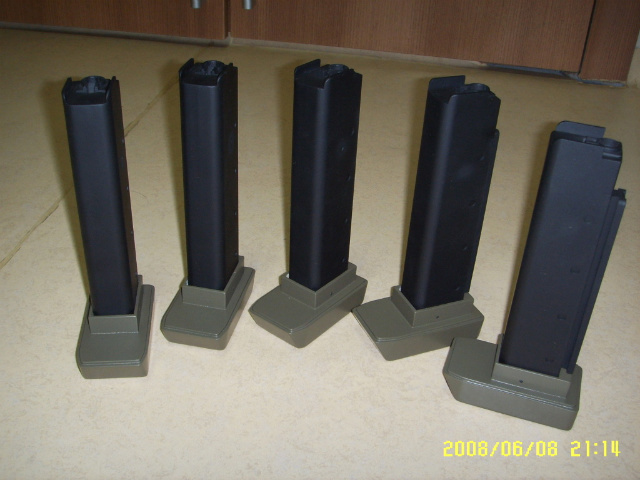

Sprayed five magazines.
SSL12439.jpg [ 154.75 KiB | Viewed 4280 times ]


Attachment:

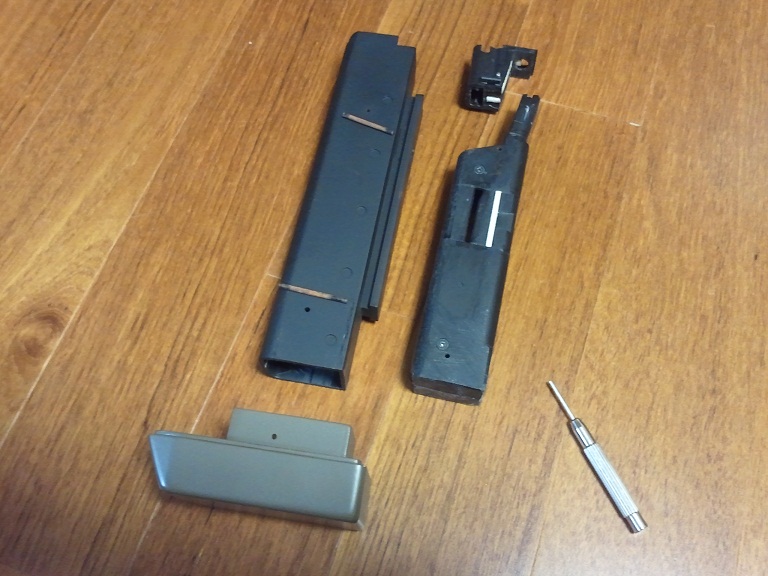

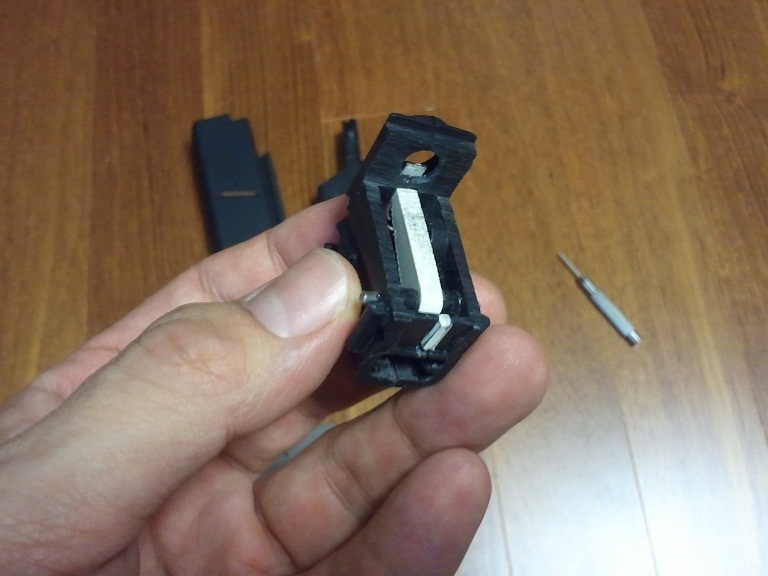

It's easy to disassemble. First, unplug the two pin, pull out the bottom, and subtracting the internal parts.
SSL12440.jpg [ 166.4 KiB | Viewed 4280 times ]


Attachment:
I made bottom of magazine completly new shape, so 9voltage battery for digital counter and muzzle sensor had moved inside the SPAS shotgun tube. on/off switch also moved to side.
SSL11980.jpg [ 183.31 KiB | Viewed 4280 times ]


Attachment:

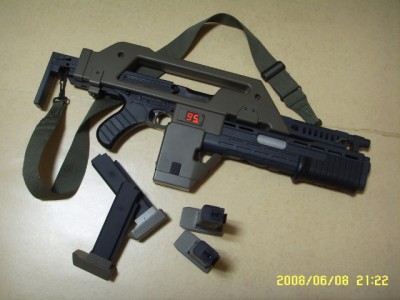

Complete...
SSL12450.jpg [ 172.26 KiB | Viewed 4280 times ]


Thank you for watching. :D


Last edited by 74JakeSpeed on Fri Aug 17, 2012 1:44 am, edited 3 times in total.

Top
 Profile
Reply with quote
Noble
 Post subject: Re: Making 95 rounds magazine for G&P PR
PostPosted: Fri Jul 13, 2012 8:51 pm
You tell me man, I only work here.
User avatar

Location: Los Angeles
Country: United States
Very nice work!

I plan on doing something similar to that by removing a mid section of some king arms midcap thompson mags.
Top
 Profile
Reply with quote
MattRendar
 Post subject:
PostPosted: Sun Aug 05, 2012 3:57 am
User avatar

Location: long island , NY
Country: United States
Very cool ! Nice work

_________________
Cpl Matthew Rendar. M56 smart gun operator. 2nd bat 7th colonial marines "Rendars Raiders "
Top
 Profile
Reply with quote
74JakeSpeed
 Post subject: Re: Making 95round magazine for G&P PR
PostPosted: Thu Aug 16, 2012 10:44 am

Country: Korea, South
More photos about 95round Magazine
Attachment:
2012-08-08_01.jpg [ 115.82 KiB | Viewed 4171 times ]
Attachment:
2012-08-08_02.jpg [ 140.66 KiB | Viewed 4171 times ]
Attachment:
2012-08-08_03.jpg [ 100.98 KiB | Viewed 4171 times ]
Attachment:
2012-08-08_04.jpg [ 101.25 KiB | Viewed 4171 times ]
Attachment:
2012-08-08_05.jpg [ 137.87 KiB | Viewed 4171 times ]


Last edited by 74JakeSpeed on Fri Aug 17, 2012 1:45 am, edited 3 times in total.

Top
 Profile
Reply with quote
74JakeSpeed
 Post subject: Re: Making 95round magazine for G&P PR
PostPosted: Thu Aug 16, 2012 10:58 am

Country: Korea, South
More photos about 95round Magazine
Attachment:

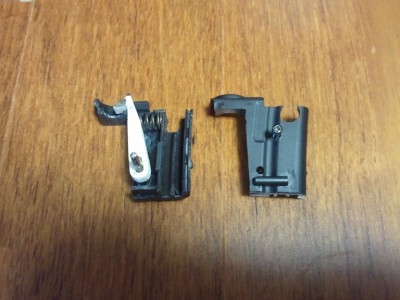

SAAMP7202_remove1.jpg [ 11.86 KiB | Viewed 4172 times ]
Attachment:
2012-08-08_06.jpg [ 133.54 KiB | Viewed 4171 times ]
Attachment:
2012-08-08_07.jpg [ 160 KiB | Viewed 4171 times ]
Attachment:
Mag-Cm030-hicap-2T_cut4.jpg [ 15.36 KiB | Viewed 4172 times ]
Attachment:
2012-08-08_08.jpg [ 91.97 KiB | Viewed 4171 times ]
