RelicHunter
 Post subject: APC 1/6th Scale Model Build
PostPosted: Thu Jan 06, 2022 6:04 pm

Country: United Kingdom
Hi Marines

I'm looking for some help.

I plan on building an 1/6th Scale R/C APC, with moving turrets, with sound, working lights etc and looking for a set of production blueprints or accurate dimensional plans?

I did see a set of plans a few years ago online somewhere which were huge, but not sure if these are still available.

I'm going to create a full size 3D model to start with and then scale it to 1/6th of accuracy.

I plan on building the chassis and body from aluminium.

Are there any members that can point me in the right direction at all?

Kind regards

Steve
Top
 Profile
Reply with quote
retrogarde
 Post subject:
PostPosted: Sat Jan 08, 2022 2:06 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Hi Steve,
Have you checked our Skiffy's build?

viewtopic.php?f=3&t=17004

A different scale obviously, but there may be some useful information there. Good luck with your build, I love the idea of it!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:
Top
 Profile
Reply with quote
RelicHunter
 Post subject: Re: APC 1/6th Scale Model Build
PostPosted: Thu Jan 13, 2022 10:39 am

Country: United Kingdom
Hi Retrogarde

Thank you for the heads up I will take a look at the thread.

Kind regards

Steve
Top
 Profile
Reply with quote
RelicHunter
 Post subject:
PostPosted: Tue Feb 08, 2022 6:03 pm

Country: United Kingdom
Hi Marines

A little update for you.

So I've started to model the APC full size and will scale down to 1/6th once the full assembly is complete.

I've created the basic body as one piece then added all the individual parts separately, creating a working top level assembly.

Still a hell of a long way to go and some much needed info, but you can start to see it take shape.

Hopefully these attachments can be viewed ok

Kind regards

Steve

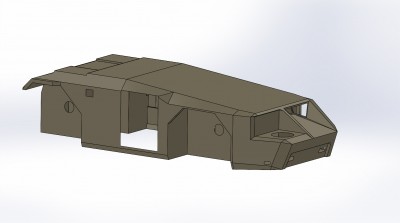

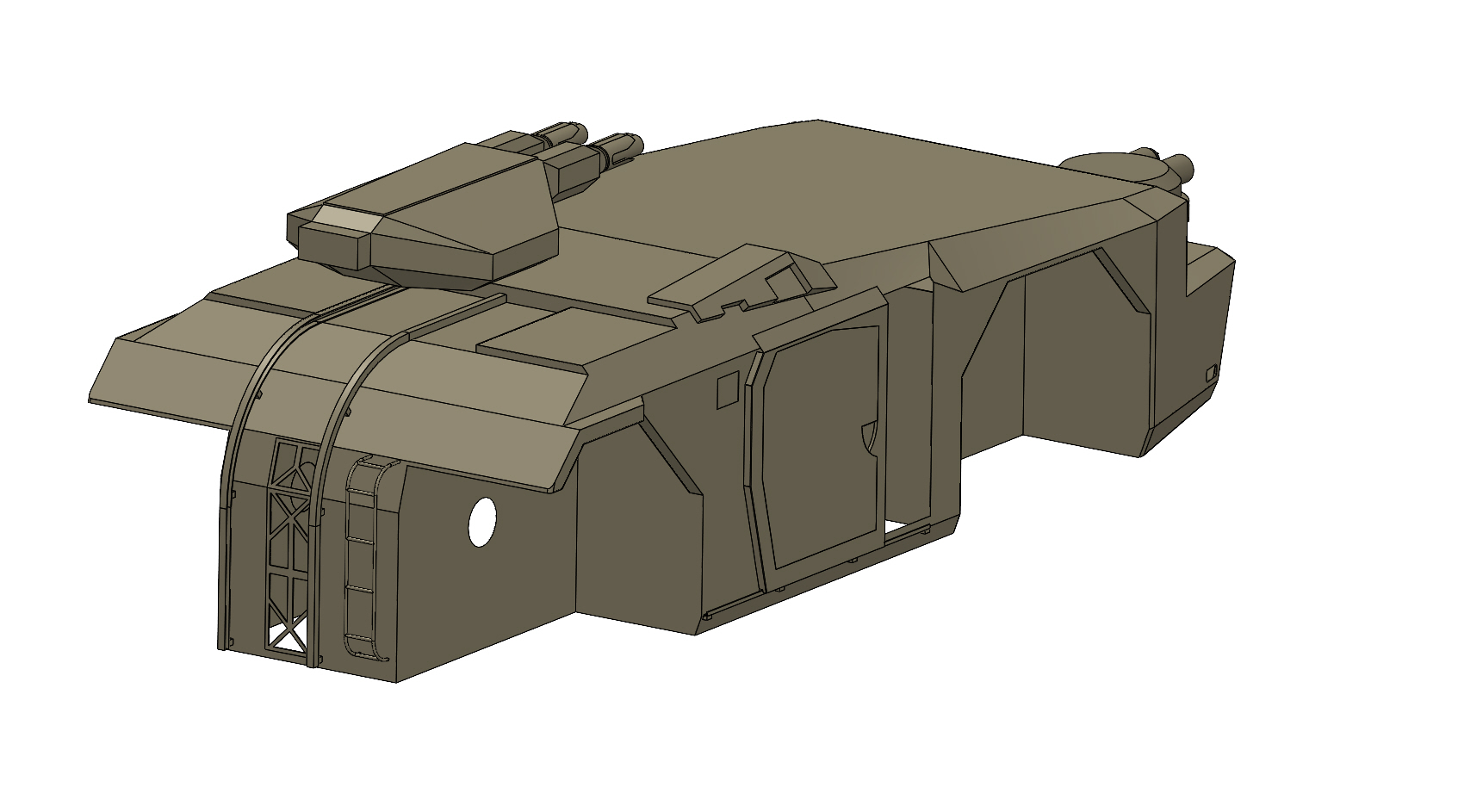

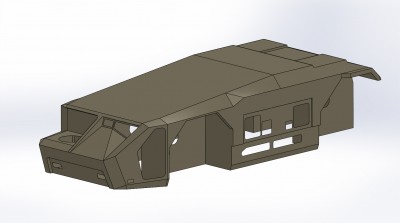

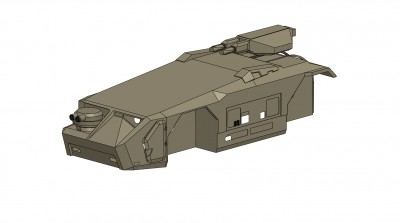

APC Model Assembly 3.JPG
APC Model Assembly 3.JPG [ 272.67 KiB | Viewed 894 times ]

APC Model Assembly 2.JPG
APC Model Assembly 2.JPG [ 234.4 KiB | Viewed 894 times ]

APC Model Assembly.JPG
APC Model Assembly.JPG [ 241.89 KiB | Viewed 894 times ]

Body View 2.JPG
Body View 2.JPG [ 207.4 KiB | Viewed 894 times ]

Body View 1.JPG
Body View 1.JPG [ 246.93 KiB | Viewed 894 times ]

Top
 Profile
Reply with quote
retrogarde
 Post subject:
PostPosted: Tue Feb 08, 2022 9:14 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
This is looking great!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:
Top
 Profile
Reply with quote
