 Post subject:
PostPosted: Fri Sep 11, 2020 10:14 pm
GarageGeek
User avatar

Country: United States
Anybody got a finished print?? Ive not had the time to print one yet.


Top
 Profile
Reply with quote
 Post subject: Re: 3d printed helmet camera
PostPosted: Fri Sep 11, 2020 10:26 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
yes, perfect fit

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: 3d printed helmet camera
PostPosted: Sun Oct 03, 2021 10:45 am
User avatar

Country: Netherlands
thanks so much smrtazzsmrtgnnr for sharing!
I took your model, made some small changes (pre drilled screw holes, a new separated topbutton (based on the plastruct part) for better printing results, and more rounded and printed it with my elegoo mars resin printer. I love it!

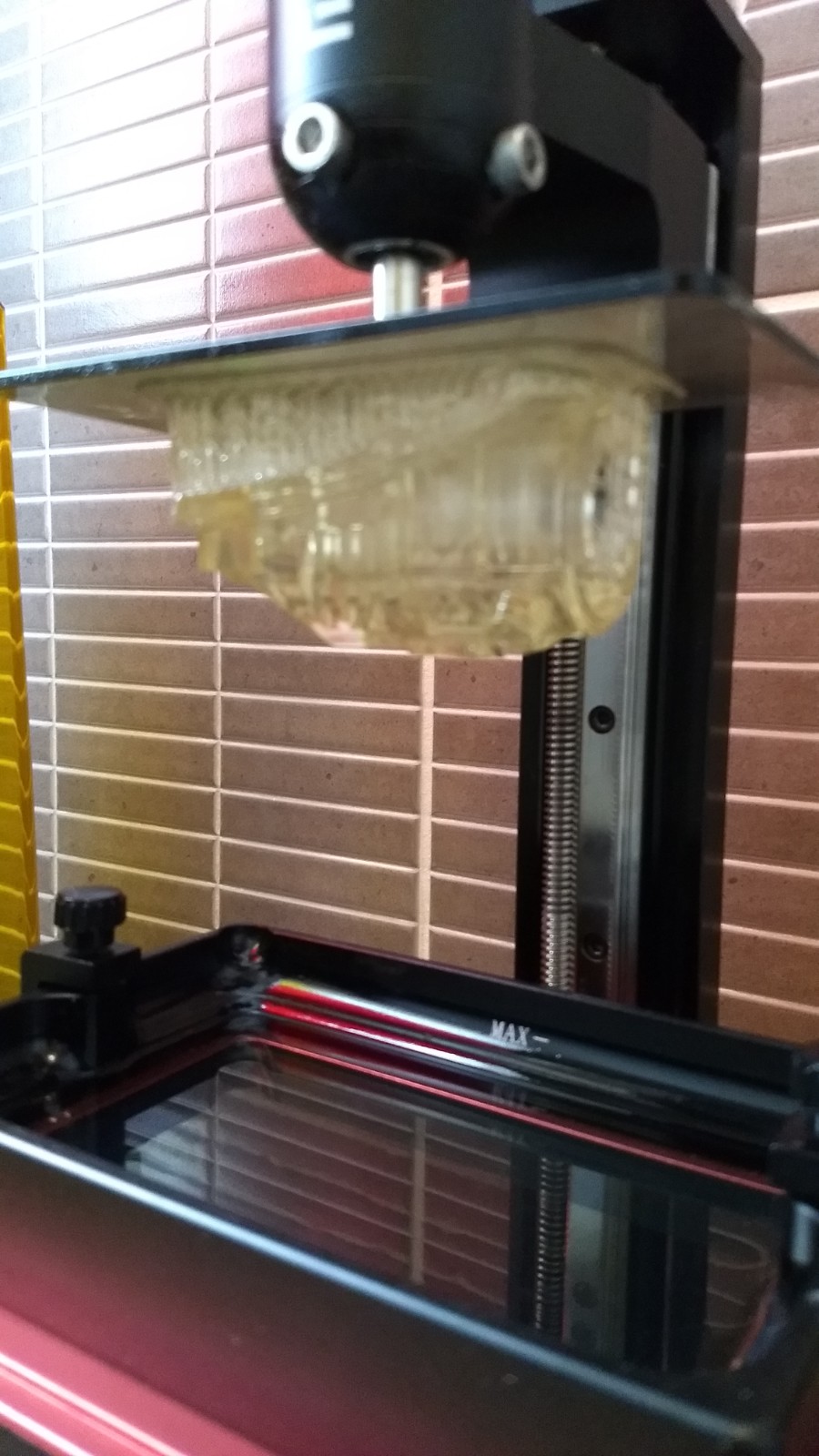

Took some attempts this orientation gave me best results, The top of the camera is level/perepndiculari with the buildplate so that is prints as one final smooth layer.

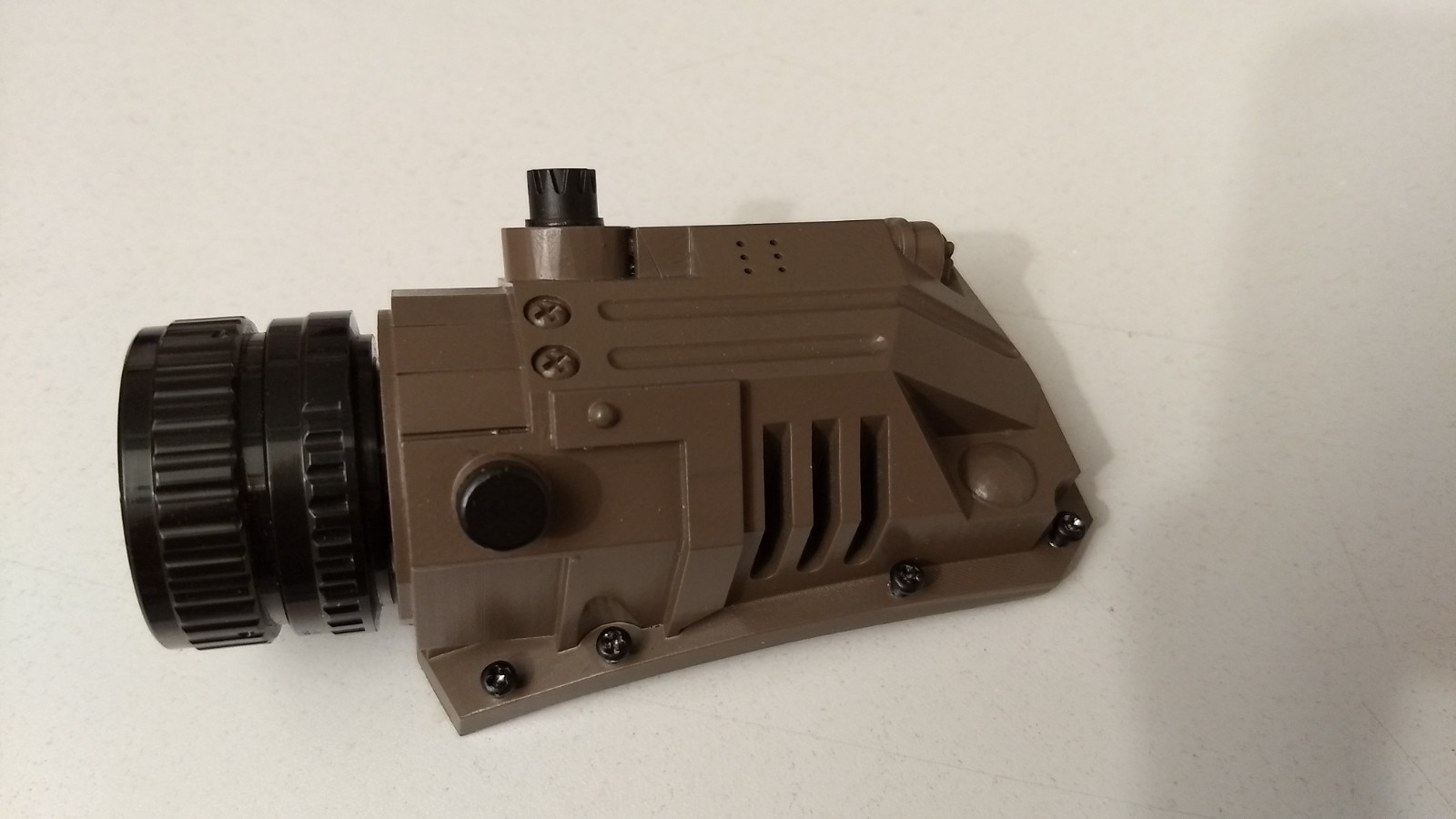

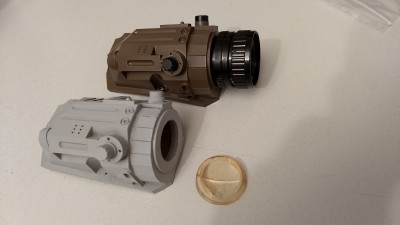

The grey version is your model, the painted one is with my changes.
I used a real pentax lens.

IMG_20210907_212438868.jpg [ 149.81 KiB | Viewed 651 times ]

IMG_20210907_212355661.jpg [ 171.02 KiB | Viewed 651 times ]

IMG_20210826_174746942.jpg [ 236.24 KiB | Viewed 651 times ]

Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Sun Oct 03, 2021 2:33 pm

Location: USA
Service Number: A02/TQ0.0.52138E2
Country: United States
Loving the way those turned out on an SLA machine.


Top
 Profile
Reply with quote
 Post subject: Re: Re:
PostPosted: Sun Oct 03, 2021 7:10 pm
User avatar

Country: United States
Harry Harris wrote:
knoxvilles_joker wrote:
I am trying reinvent the wheel.

I think that sums up a lot of 3D printing or 3D printed items. This is probably a conversation for another thread but I've seen some terrible 3D prints of things like Pulse Rifles and the like, which are neither accurate or of a good quality of finish. Don't get me wrong, I think 3D printing is amazing, but so is RTV rubber mould making and resin casting, and each has it's place in the world. A a lot of the time though it looks like folks think that 3D printing, in any form is the method by which to make absolutely everything, rather than looking for the right tool for the job.

Harry
quality of finish is on who is finishing a 3d print. I agree tho I cannot 3d model yet but can see where even the pr model I have needs tweaking. But even the movie prop models etc have discrepancies that make designing a 3d model difficult. Buying resin casts or real components is hard and expensive. The electronic lilykil pr I'm making needs tweaks might talk to him soon see if he agrees on my observations however it is modeled off of a real Thompson which is cool having shot them before.


Top
 Profile
Reply with quote
